SP95

Used for architectural acoustic measurement

Impact ball

Product Name：Impact ball

Product model：SP95

Manufacturer brand：SVANTEK

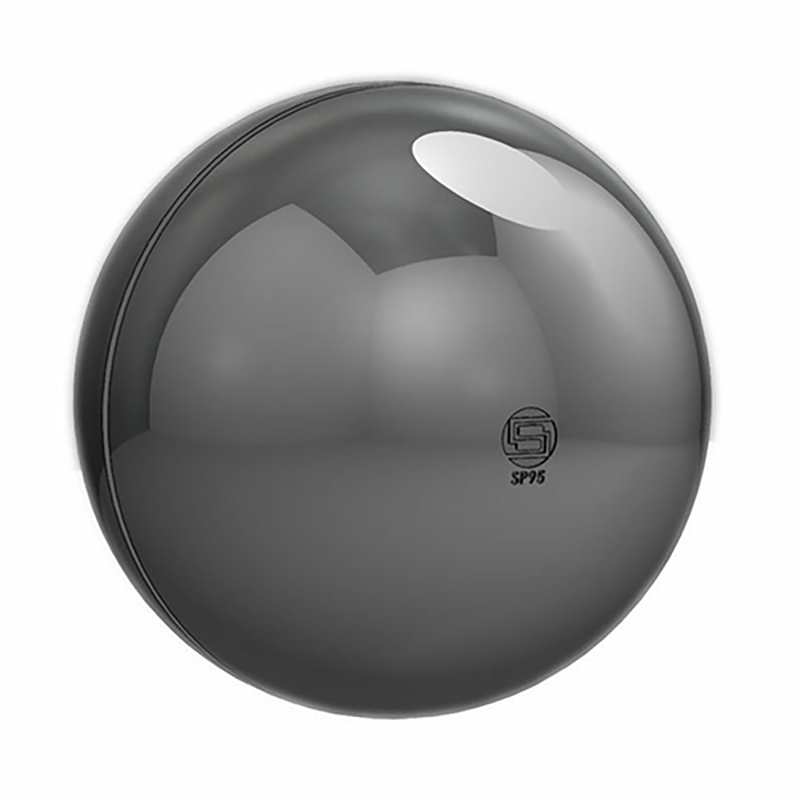

SP95 impact ball is used for sound insulation testing of lightweight structures that produce excessive impact force when using a standard impact machine to impact a sound source and are not suitable for use with a standard impact machine.Its design complies with ISO 10140-5 and ISO 16283-2 standards. The use of SP95 hitting ball is very simple, it falls freely from a height of 100 centimeters to the ground. In practice, SP95 can be used to evaluate soft effects related to human interference, such as children jumping.

Functional characteristics

  • Used for conducting low-frequency impulse noise insulation tests in the frequency band of 31.5Hz to 500Hz.
  • Complies with ISO 10140-5 and ISO 16283-2 standards.
  • Mass of 2.5 kilograms, convenient size, easy to transport and carry.
  • Comes with a comfortable handbag
  • Easy to clean with water.



Video Introduction

Technical specifications

Compliant with standardsISO 10140-5：2011、ISO 16283-2：2015
MaterialSilicon rubber
Diameter180 mm
Weight2.5 kg

Our company's policy is to continuously innovate and develop our products.

Therefore, we reserve the right to change product specifications without prior notice.
