94&114dB@1000Hz

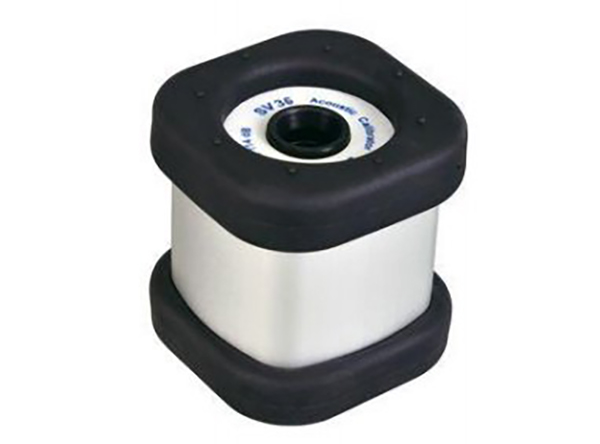

Level 1 sound calibrator
Product Name: Level 1 sound calibrator
Product model: SV 36
Manufacturer brand: SVANTEK
SV 36 is a type approved sound calibrator that meets the Class 1 requirements of IEC 60942:2017. This calibrator is designed to calibrate Level 1 and Level 2 sound level meters at frequencies of 94 dB and 114 dB at 1 kHz.
The accuracy of calibration signals is controlled by built-in microprocessors and reference sensors: pressure resistance sensors, atmospheric pressure sensors, and temperature sensors that monitor the generation of pressure level accuracy. The feedback adjustment control circuit makes all adjustments to the calibration signal fully automatic, so users do not need to make any manual adjustments to the ambient temperature and static pressure level. The SV 36 Level 1 sound calibrator has an infrared sensor that can detect the presence of a microphone and automatically turn the calibrator on/off. The calibrator is powered by two LR03/AAA batteries. Each acoustic calibrator provides a calibration statement, allowing users to confirm that their instrument can measure correctly.
—The SV36 sound calibrator is a PTB approved Level 1 sound calibrator. This calibrator complies with the IEC 60942:2017 standard, which specifies the performance requirements for various types of sound calibrators. The SV36 sound calibrator is suitable for calibrating Class 1 and Class 2 sound level meters with 1/2 "or 1/4" microphones.
—The SV36 sound calibrator provides two levels of 94 dB or 114 dB at a frequency of 1 kHz. The accuracy of the calibration signal is automatically controlled and adjusted by the built-in microprocessor using an internal reference sensor, so users do not need to manually adjust it.
—The SV36 Level 1 sound calibrator has an infrared sensor that can detect the presence of a microphone and automatically turn the calibrator on/off. This solution makes the calibration process easier and extends the operation time to 2 years!
| Calibration signal parameters | |
| Sound Pressure Level (SPL) | 114 dB or 94 dB |
| AccuracyIEC 60942：2017 | Level 1 |
| SPL tolerance | ± 0.25 dB |
| Frequency tolerance | ± 0.2 % |
| Total Distortion (THD) | ＜ 0.50 % @ 94 dB；＜ 0.75 % @ 114 dB |
| General information | |
| Payload sensitivity | 0.00027 dB/mm3 |
| Stable time of quantity value | Typical value of 10 seconds, maximum of 25 seconds |
| Applicable microphone size | 1/2 "and 1/4" (with SA 30 adapter) |
| Storage temperature range | - 25 ℃ ÷ + 70 ℃ |
| CE standard | EN 61010-1 : 2010；EN 61326-1 : 2013；EN 60942 : 2017 |
| Working conditions | |
| Temperature range | -10 ℃~+50 ℃ (related SPL error ≤ ± 0.15 dB) |
| Atmospheric pressure range | 65 kPa~108 kPa (related SPL error ≤ ± 0.1 dB) |
| Humidity range | 25%~90% RH (related SPL error ≤ ± 0.05 dB) |
| Reference conditions | |
| Ambient temperature | 23℃ |
| Atmos | 101.3 kPa |
| Humidity | 30 % ÷ 80 % RH |
| Effective microphone load volume | 250 mm3 pairs of microphone type B&K 4134 |
| Power supply | |
| Type | two × LR03 (IEC)/AAA (ANSI) alkaline batteries |
| Working Time | 40 hours @ 94 dB; 30 hours @ 114 dB |
| Standby time | About two years |
| Ainimum voltage | 2.1 V |
| Maximum working voltage | 4 VDC - Absolute maximum power supply voltage on battery terminals |
Our company's policy is to continuously innovate and develop our products.
Therefore, we reserve the right to change product specifications without prior notice.
